減速電機主要技術參數 Reducer motor Technical Data
減速比 Max.Gearbr eaking torque | 最大額定力矩 Max.Running.to rque | 最大損壞扭力 Max.Gearbr eaking torque
| 效率 Gearing effic iency
| 級數 Number of stages

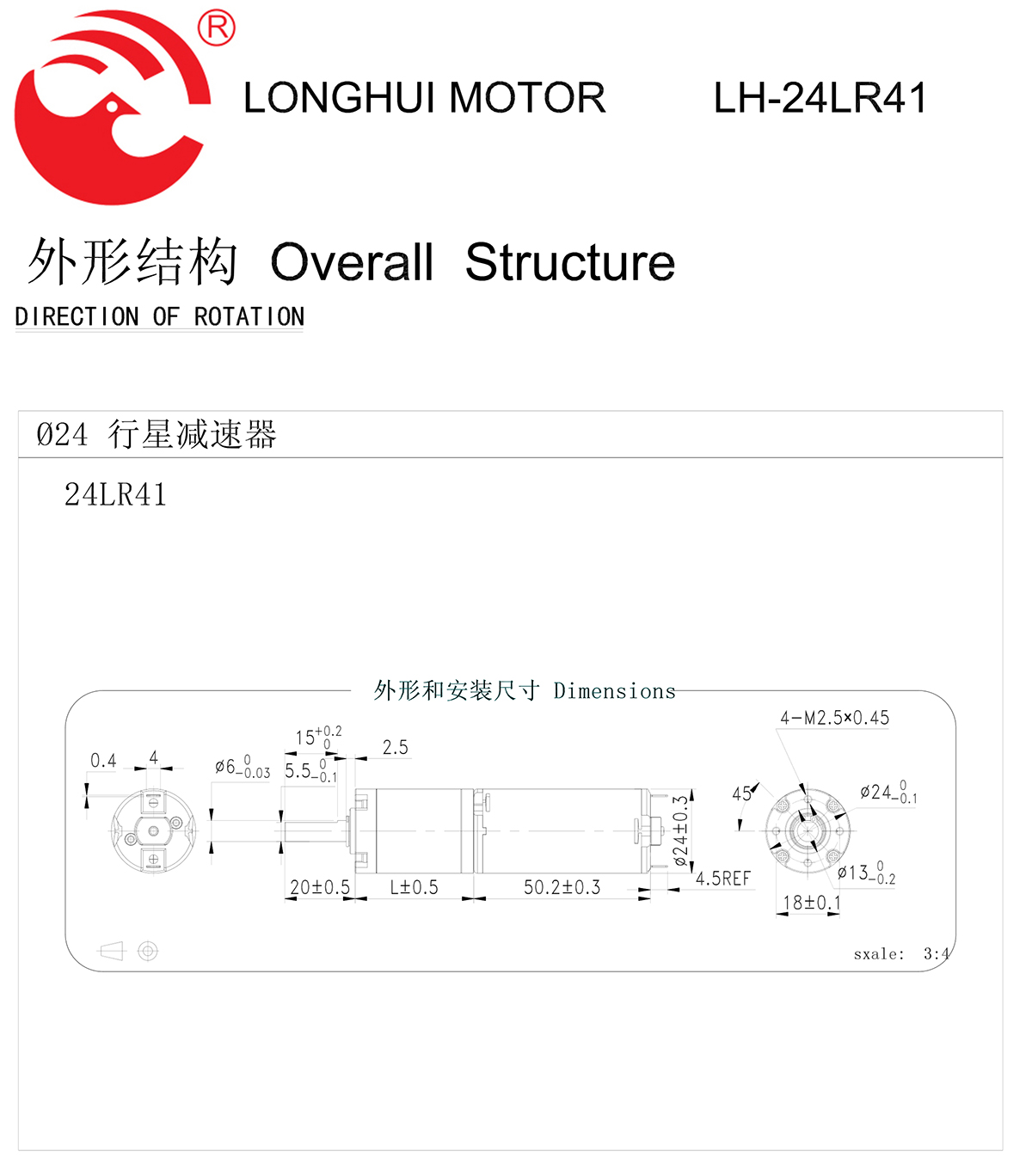

| 減速電機長度 Reducer motor length"L"mm
|
1/4, 1/5 | 1.0 kgf.cm
| 3.5 kgf.cm
| 80%
| 1 | 65.7 |
1/15, 1/18, 1/22
| 2.0 kgf.cm
| 6.5 kgf.cm
| 70%
| 2
| 73.1 |
1/57, 1/69, 1/83, 1/100
| 10.0 kgf.cm
| 35.0 kgf.cm
| 60%
| 3 | 80.5
|
1/221, 1/266, 1/320,1/334, 1/462
| 10.0 kgf.cm | 35.0 kgf.cm | 50%
| 4 | 87.9
|
1/854
| 10.0 kgf.cm | 35.0 kgf.cm
| 40%
| 5
| 92.9 |
馬達清單 Motor data
馬達型號 Motor type
| 額定電壓 額定電壓 (v) | 空載電流 No load current (mA)
| 空載轉速 No load speed (rpm) | 額定電流 Rated current (mA)
| 額定轉速 Rated speed (rpm)
| 額定扭力 Rated torque (gf.cm)
| 額定功率 Rated power (w) | 堵轉扭力 Stall torque (gf.cm) | 堵轉電流 Stall current (mA) | 重量 Weight (g)
|
DC-290128000
| 12
| ≤350 | 8000
| ≤1000
| 7000 | 88
| 6.3
| ≤669 | ≤6600
| 83.0 |
DC-290248000
| 24 | ≤150
| 8000
| ≤500
| 7000
| 84
| 5.7 | ≤614 | ≤3000 | 83.0 |
